Casement
Interior Closed
Interior Open
Exterior Open

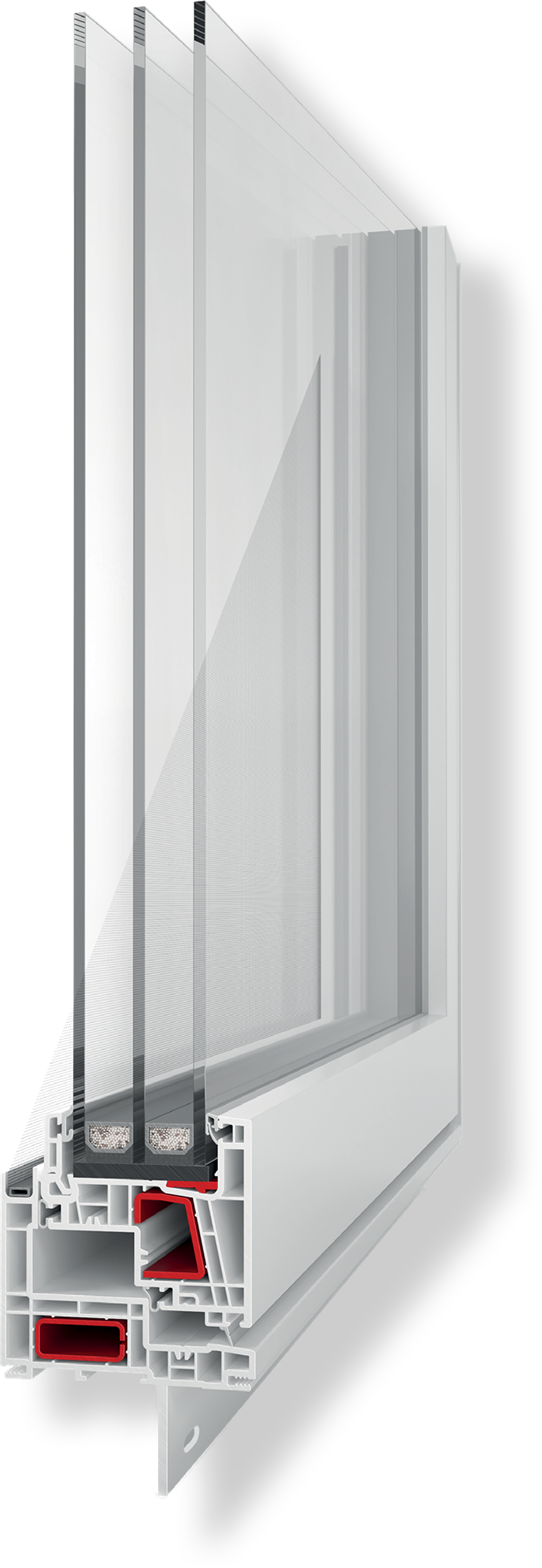

The EuroLine Casement has a multi-chamber design encompassing a large glazing cavity that allows for the highest-performance and triple-glazed IGUs. The multi-point locking mechanism uses corner drives to ensure a tight fit and is enhanced with stainless steel hardware. The result is the performance of a lifetime. Screen options available.
Choose Between
Fiberglass ThermoPlus Composite Casement
Design + Engineering Meets Technology
- Improved Thermal Performance without the requirement of steel
- Sizes that accommodate up to 30 % larger openings before needing steel reinforcement going over 76 in (1.9 m) in height
- Fusion-welded corners offer increased thermal and acoustical performance
- Permanent water and air sealing
- Multiple locking points surrounding the sash create extra security, tighter sealing, and comfort
- Industry-leading warranty with Double (25mm) and Triple (33-44 mm) glazing
Key Performance Data
0.14 (IP)
0.79 (SI)
U-Value
Best Thermal NFRC
720 Pa
15 psf
Water Penetration Resistance
0.33 L/s*m² (A3)
0.066 cfm/ft²
Air Infiltration
* All data shown are for double paned windows and doors. For more information about performance data for specific configurations and add-ons, please speak to our design representative
For Curated Details that Customize Your Project
Finishes
Handles
Obscure Glass
Custom Windows
Perfect For The Following Applications
Passive House
PHIUS certification
Large openings
Extreme climates
Oceanfront properties
Aggressive air, water, and energy requirements
Passive House and PHIUS builds
Single-family homes
High-rises and commercial buildings
Configuration Options
Casements
Double Casements
Added Transom
Available Sizes
NFRC – Thermal Performance Chart
NAFS PERFORMANCE DATA
uPVC Casement
Design + Engineering meets technology
- Capable of achieving commercial windows classification (CW)
- ROTO FRANK’s X-Drive multi-point locking hardware
- Made of proprietary North American approved uPVC which is 100% recyclable
- Multi chamber design delivers superior thermal performance along with triple gasket design for the most air tight casement on the market.
- 4-chamber profiles with triple gaskets for superior thermal performance
- Fusion-welded corners for strength and permanent water sealing compared to mechanically fastened systems
- Compatible with EuroLine 4700 Series allowing a wide range of design possibilities
- Double Glazing (22mm) and Triple Glazing (35mm) with warm edge Super Spacer®TriSeal™ and industry leading warranty
- Stainless Steel hardware from ROTO with multiple locking points ensure supreme airtightness
- Compatible with EuroLine 4700 Series
allowing a wide range of design possibilities - Double Glazing (22mm) and Triple Glazing
(35mm) with warm edge Super Spacer®
TriSeal™ and industry leading warranty
Design + Engineering meets technology
- Capable of achieving commercial windows classification (CW)
- ROTO FRANK’s X-Drive multi-point locking hardware
- Made of proprietary North American approved uPVC which is 100% recyclable
- Multi chamber design delivers superior thermal performance along with triple gasket design for the most air tight casement on the market.
- 4-chamber profiles with triple gaskets for superior thermal performance
- Fusion-welded corners for strength and permanent water sealing compared to mechanically fastened systems
- Compatible with EuroLine 4700 Series allowing a wide range of design possibilities
- Double Glazing (22mm) and Triple Glazing (35mm) with warm edge Super Spacer®TriSeal™ and industry leading warranty
- Stainless Steel hardware from ROTO with multiple locking points ensure supreme airtightness
- Compatible with EuroLine 4700 Series
allowing a wide range of design possibilities - Double Glazing (22mm) and Triple Glazing
(35mm) with warm edge Super Spacer®
TriSeal™ and industry leading warranty
Key Performance Data
0.17 (IP)
0.97 (SI)
U-Value
Best Thermal NFRC
720 Pa
15 psf
Water Penetration Resistance
0.20 L/s*m² (A3)
0.04 cfm/ft²
Air Infiltration
* All data shown are for double paned windows and doors. For more information about performance data for specific configurations and add-ons, please speak to our design representative
For Curated Details that Customize Your Project
Finishes
Handles
Obscure Glass
Custom Windows
Perfect For The Following Applications
Passive House
PHIUS certification
Large openings
Extreme climates
Oceanfront properties
Aggressive air, water, and energy requirements
Passive House and PHIUS builds
Single-family homes
High-rises and commercial buildings
Key Performance Data
0.13 (IP)
0.70 (SI)
U-Value
Best Thermal NFRC
720 Pa
15 psf
Water Penetration Resistance
0.004 L/s*m² (A3)
0.001 cfm/ft²
Air Tightness
* All data shown are for double paned windows and doors. For more information about performance data for specific configurations and add-ons, please speak to our design representative
Configuration Options
Casements
Double Casements
Added Transom
Available Sizes
NFRC – Thermal Performance Chart
NAFS PERFORMANCE DATA
