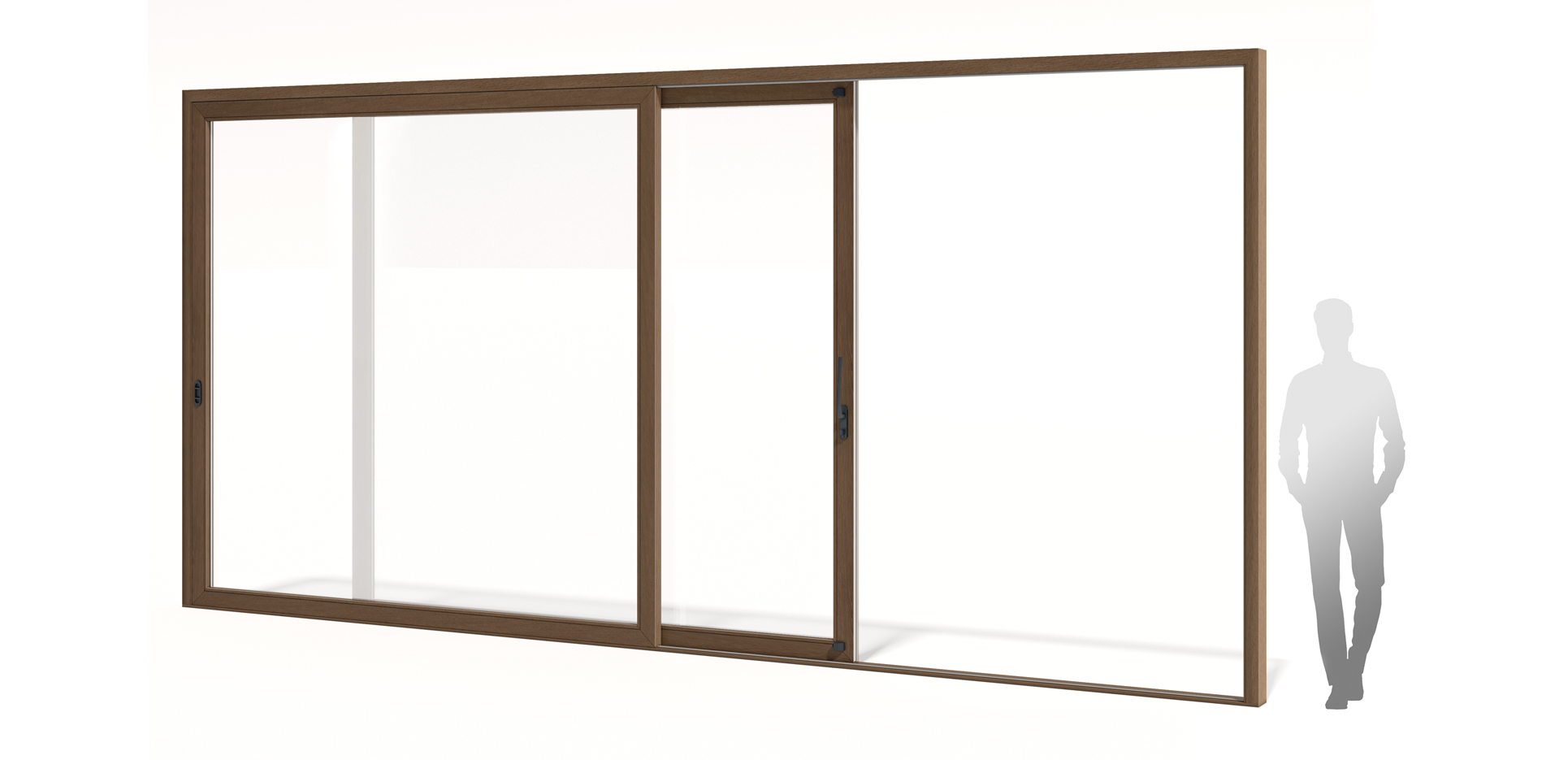

Lift & Slide
The ultimate energy-efficient premium door designed specifically for extremely large openings.
Design + Engineering Meets Technology
- Impressive thermal insulation
properties capable of meeting
Passive House Certification levels - Advanced European-engineered
hardware allowing effortless
movement of oversized glass panels - Exceptional values for wind, water
tightness, security, and acoustic
insulation, even with maximum sizes - Refined architectural profile and
sleek track complement the

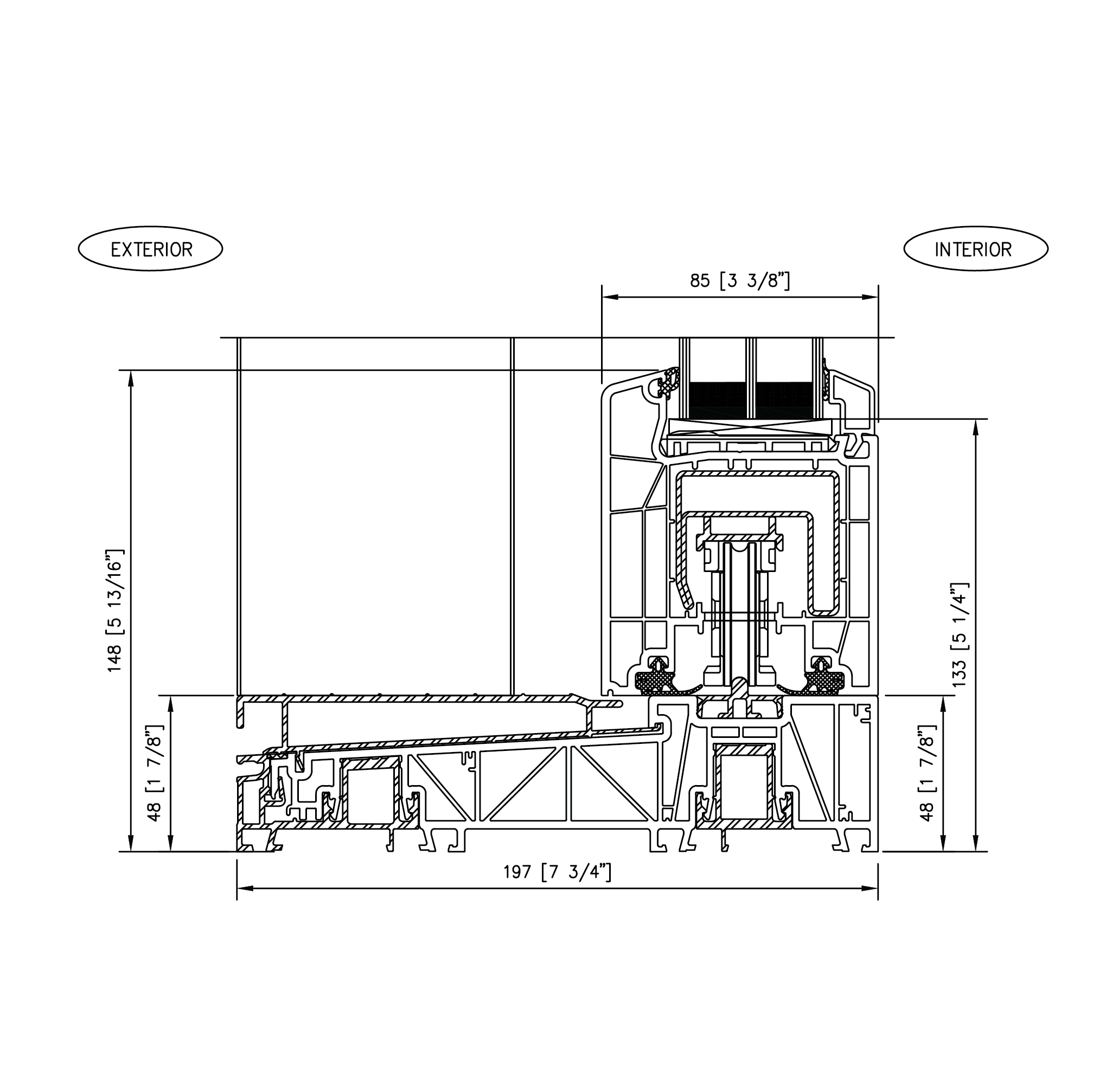

design aesthetic - High-performance thermally broken
threshold complete with enhanced insulation - Compatible with Barrier-Free Construction
- Multiple retractable screen options
are available
- Aluminum threshold with integrated drain function
- Easy installation
Compatible with Accessibility Options
The door frame of Lift & Slide, which visually looks like a continuous floor, now includes a flat threshold for comfortable, obstacle-free transitions from indoors to outdoors.
The Lift & Slide door with barrier-free threshold fulfills the requirements required by DIN 18040 “Barrier-Free Construction”.
For Curated Details that Customize Your Project
Finishes
Handles
Obscure Glass
Custom Windows
Perfect For The Following Applications
Extra Large openings
Extreme climates
Oceanfront properties
Aggressive air, water, and energy requirements
Passive House and PHIUS builds
Single-family homes
High-rise and commercial buildings
Key Performance Data
0.16 (IP)
0.90 (SI)
U-Value Best Thermal NFRC
720 Pa
15 psf
Water Penetration Resisitance
0.100 L/s*m² (A3)
0.01 cfm/ft²
Air Tightness
* All data shown are for double paned windows and doors. For more information about performance data for specific configurations and add-ons, please speak to our design representative
Configuration Options
Inward Slide
Outward Slide
Fixed Slide
Combination
One
Slide
Available Sizes
NFRC – Thermal Performance Chart
NAFS PERFORMANCE DATA
